7 Tools

Instrustion Manual

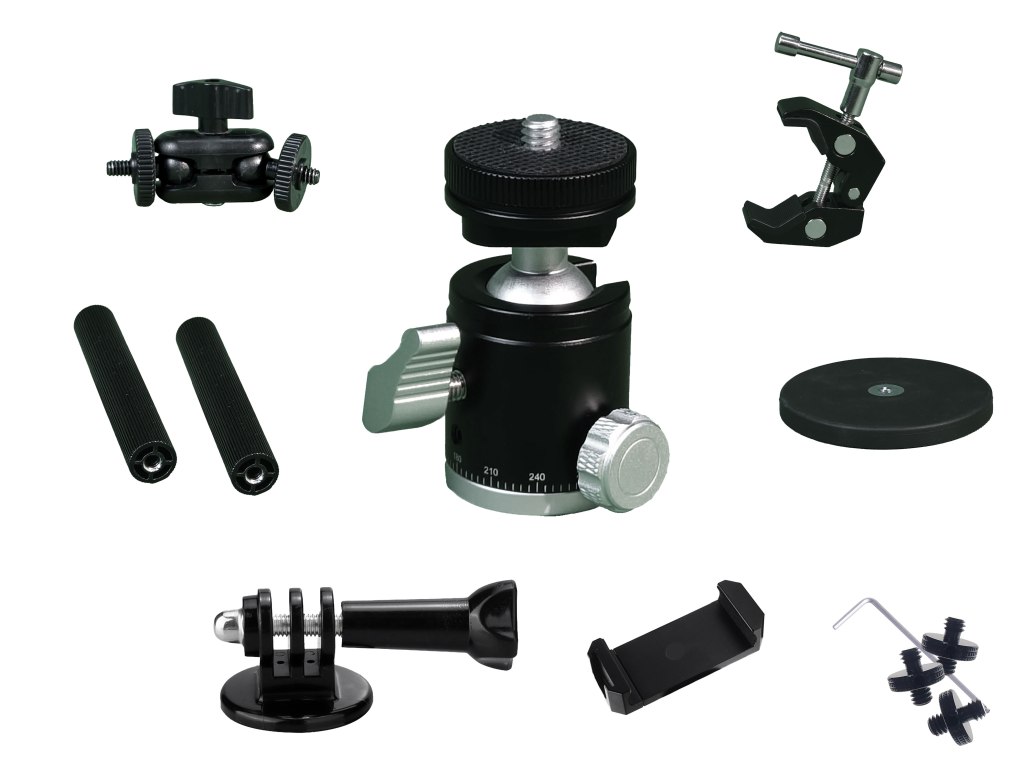

Package Content

Ball Head x 1

Dual Ball Head x 1

Magnet Base x 1

Super Clamp x 1

Extension Robe x 2

Action Cam Adaptor x 1

Phone Mount x 1

Connection Screw x 3

Screw Openner x 2

Version Control

Date	Model#	Description	Issued by
2026/4/1	TZ-07	7 Tools	FotoZ Tech

Overview

This user manual applied to a varity of different phone, camera and action camera.

This 7 Tools kit with the screws and screw holes are made of universal 1/4″ screw specifications. Can be used interchangeably between cameras or devices with 1/4″ screw specifications.

This 7 Tools kit with different tools can be connected to each other and combined into different mounting platforms for different photography equipment.

This 7 Tools kit with the Magnet Base and Super Clamp can be used in different shooting scenes.

This 7 Tools kit with the Ball head, Phone Mount and Action Camera adaptor can be used in different photography equipment.

Magnet Base

This Magnet Base with 1/4″ Screw Hole can directly connect to the Dual ball head. Or connect to the extension robe / Ball Head or Phone Mount / Action Camera Mount by the connection Screw.

The Magnet base can adhere to flat surface made of magnetizable metals.

The Magnet Base can be put horizontally on the flat table of any material as the base of the mounting system.

This Magnet Base pull-out force is 30kg, which can support general mobile phones and micro cameras weighing no more than 300g. Depend on the total distance from the Magnet Base and Device, the distance decrease, the Load bearing capacity will increase.

Super Clamp

The Super Clamp with 1/4″ Screw Hole can directly connect to the Dual ball head. Or connect to the extension robe / Ball Head or Phone Mount / Action Camera Mount by the connection Screw.

The Super Clamp with T-shaped screw controls the opening and closing of pliers, clamped on a straight rod, horizontal rod, column or mesh with a diameter of 12-45mm.

Connection Screw

The connection screw with double 1/4″ Screw Head on opposite side. This connection screw is used to connect two tools with 1/4″ screw holes or to connect external devices with 1/4 “screw holes.

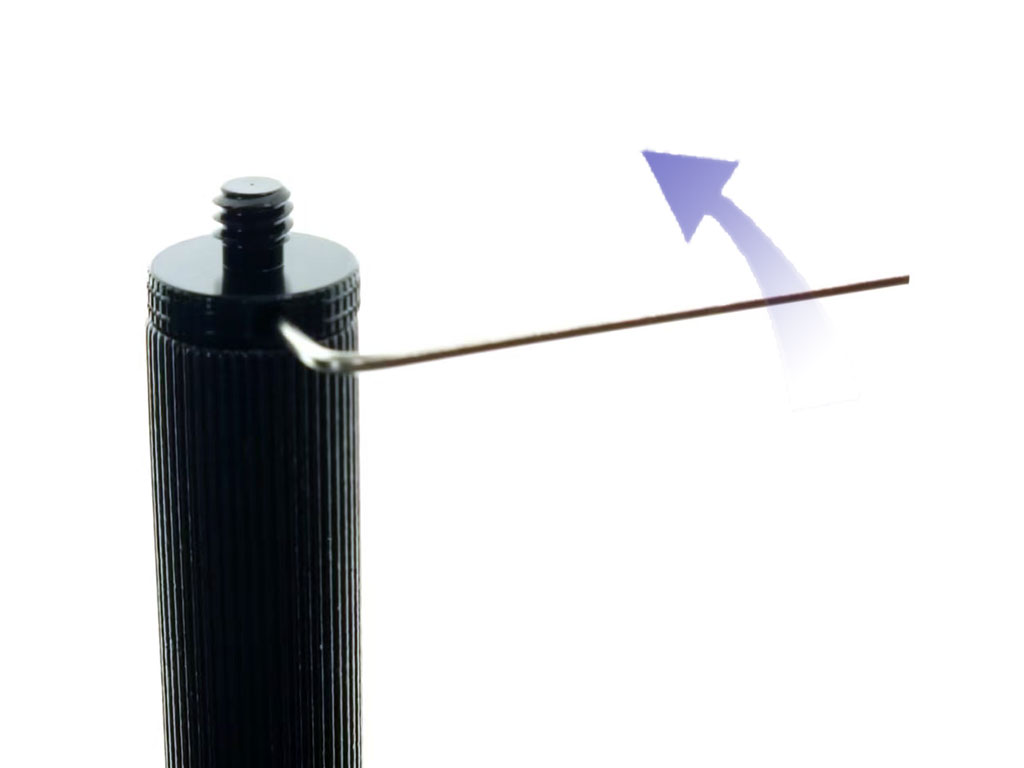

The connection screw body has a hole. When the screw is locked too tightly or jammed with other objects, insert the shorter side of the screw openner into the hole and unscrew it counterclockwise.

Extension Robe

The Extension Robe with double 1/4″ Screw Hole can be connected with Base(Magnet Base or Super Clamp) and Adaptor End(Ball Head or Phone Mount or Action Camera Adaptor) by Connection Screw to increase the total distance.

The Extension Robe length is 100mm. Connect two extension Robe will get a stick with 205mm stick to further increase the total distance.

The Extension Robe can be used as handle of photography devices and set onto the external Tripod by the 1/4″ screw hole at the end of the robe.

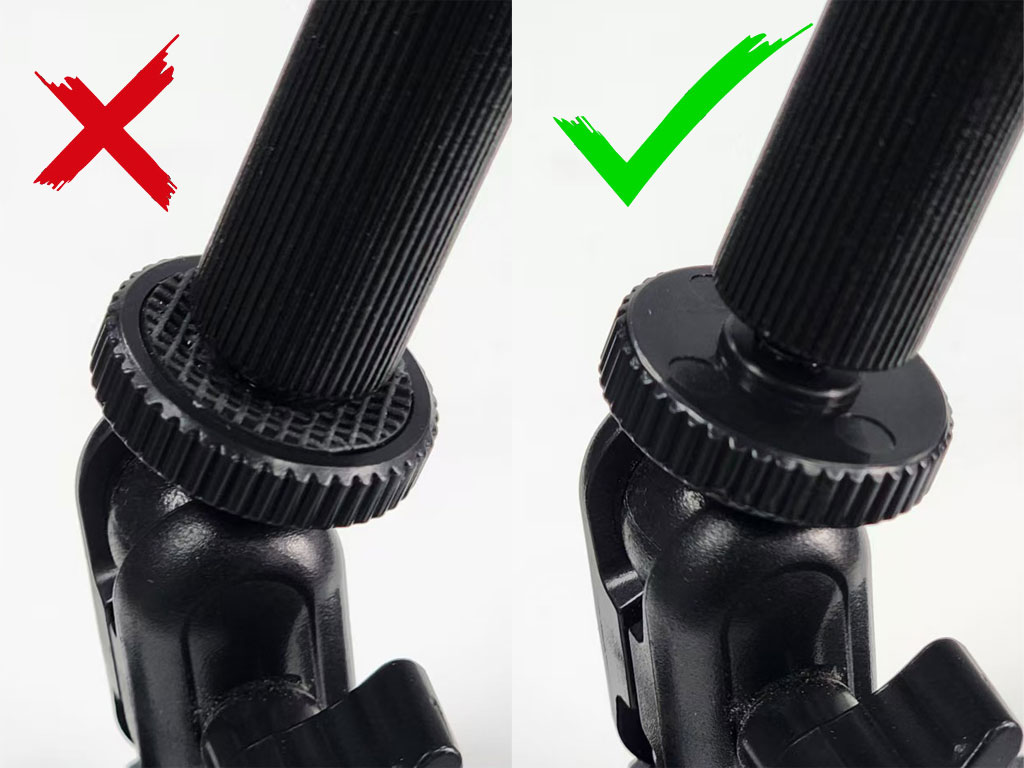

Caution: Do not attach the extension robe directly to the soft rubber surface to avoid damage.

Ball Head

The Ball Head has a 1/4 “screw hole at the bottom, which can be connected to the base / Extension Rode by screws or other external platform with 1/4” screw head.

The Ball head has a 1/4 “screw at the head can directly connect to the camera or photography equipment with 1/4” Screw Hole. Or connect to the included tools, Phone Mount or Action Camera Adaptor.

The Ball Head has two screw to control the motion. Circle one is to control the horizontal rotation. And the Flat one is to control the turning of the ball head.

Caution: Shut the circle screw before you can release the mounting at the bottom of the Ball Head. Or it will turn together.

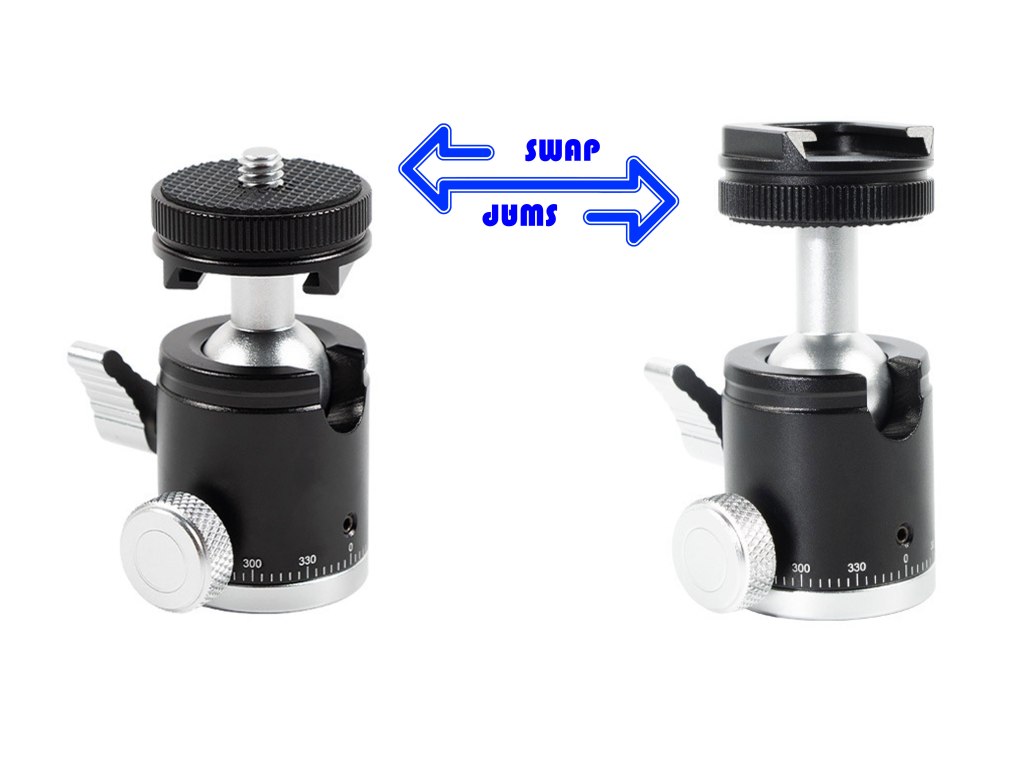

Turning the pallet in reverse can be used as a cold shoe to install photography equipment such as flashlights, Mic..etc.

Dual Ball Head

The Dual Ball Head with double 1/4″ Screw Head on opposite side can connect between the base and photography device as Magic Arm.

The Dual Ball head has a lever to control the motion of the two ball head. Turn clockwise to tighten and anti-clockwise to release.

The Magic Arm can distance can be increased by connect the Extension Arm one side or both side.

The end of the Dual Ball head can connect to the Phone Mount to attach Phone.

The end of the Dual ball head can connect to the action camera adaptor to attach the Action Camera.

Phone Mount

The Phone Mount have two screw hole. One is on the back and the other is at the bottom. Phone Mount can connect to base by connection screw on either 1/4″ screw hole.

The Phone Mount can directly connect to the Ball head or Dual ball head to attach Phone.

The Phone Mount can mount the Phone with width 60 – 90mm.

The Phone Mount has a cold shoe at the top to attach other external photography equipment such as Fill light or Mic…etc.

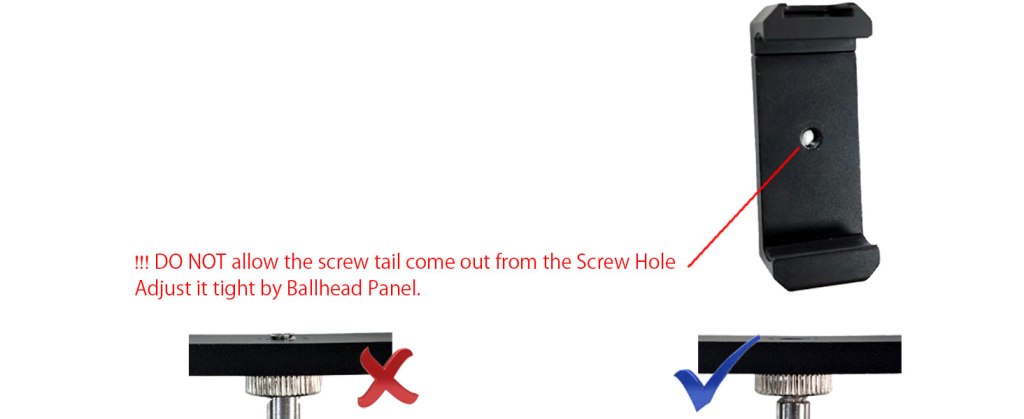

Caution: Avoid the screw longer than 6mm to apply on the screw hole at the back of the phone mount or you should use a pallet to control it.

Action Camera Adaptor

The action camera adaptor is compatible with Gopro Hero 13, Hero 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 3+, Hero Session, Gopro Max, Akaso, DJI osmo Action, Inst360, Sjcam and More Action Cameras.

The screw should be take out first to install the action camera.

The action camera adaptor has a 1/4″ screw at the bottom can directly connect to the Ball head or Dual ball head to attach Phone.

The action camera adaptor has a 1/4″ screw at the bottom can connect to the base by connection screw.

Installation

All the tooling at the 7 Tools have one or more 1/4″ Screw head or Screw hole can be connected each other, sometimes connection screw will be needed. Different tools can be combined into different Mounting systems for different photography device.

Different Mounting systems can be created based on different ideas. Please test the stability of the system (including load capacity) before actual use.

Cautions

When mounting on photography equipment, be careful not to subject it to any form of physical shock.
Be careful when placing the camera with the mounting system on a tabIe or other flat surface.
Test the stability of the system (including load capacity) before actual use.
Remove the mounting system when moving the camera.
Do not leave the 7 tools in an extremely humid place for a long time.
The mounting system should be handled with care and do not drop to prevent the risk of the accident.

Cleaning

Use a blowing brush or soft brush to remove dust from the surface of this tools. Please use a soft cloth with a small amount of mild cleaning solution.

Restriction

When using a flash or AF illuminator, the light source may be blocked and lens shadows may form on the image.
