MZ-10

Instrustion Manual

Package Content

Filll Light x 1

Flat Clip x 1

Wide Lens x 1

Macro Lens x 1

Front Lens Cap x 2

Rear Lens Cap x 2

Case x 1

Charging Cable x 1

Version Control

DateModel#DescriptionIssued by
2025/8/1MZ-10Pro Lens KitFotoZ-Tech

Overview

This user manual applied to a varity of different Smartphone.

This 16mm Wide lens I referred to as “this Wide lens” is compatible with the Clip / Case / Cage with a 17mm filter thread.

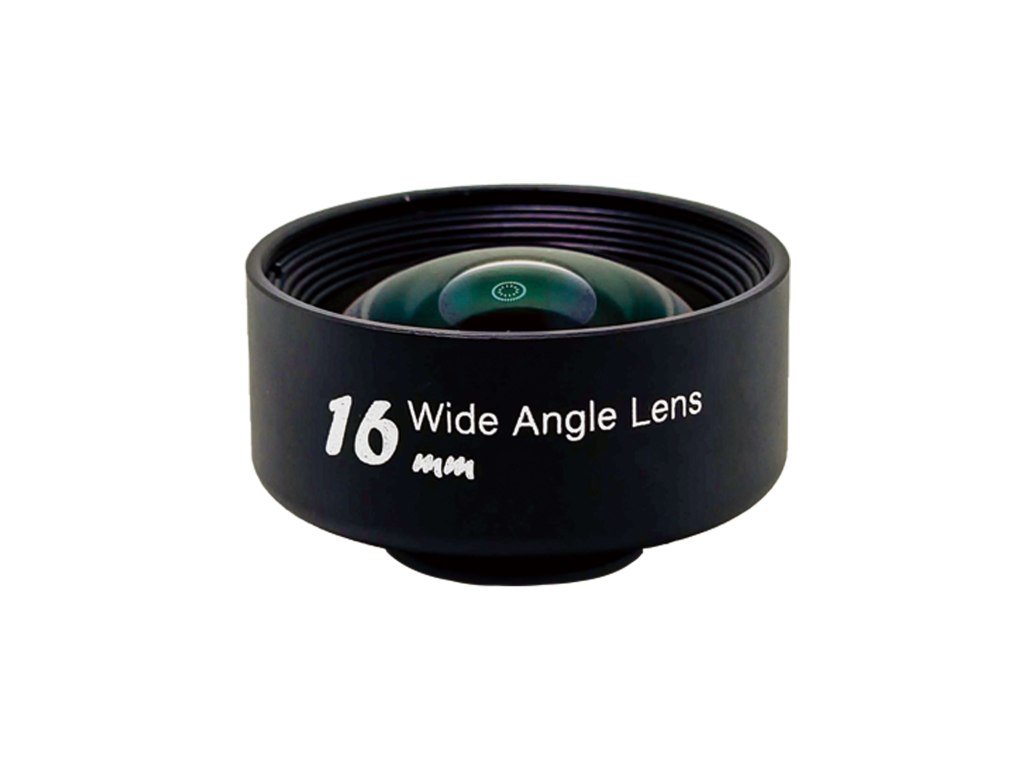

This Wide lens is compatible most of the smartphone camera, with a maximam field of view up to 84 degrees at focal lengths within 24mm equivalent to Full Frame (Front camera & Rear Main Camera).

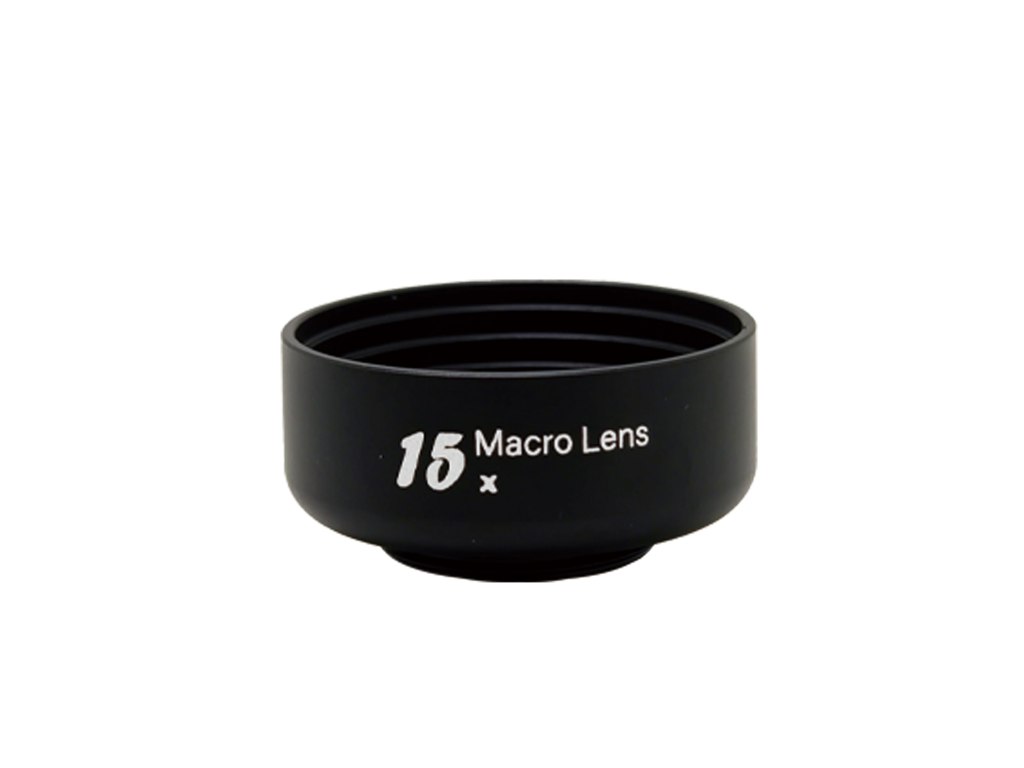

This 15x Macro lens I referred to as “this Macro lens” is compatible with the Clip / Case / Cage with a 17mm filter thread.

This Macro Lens compatible with entire camera lens on the smartphone (1x, 3x, 5x), magnification depend on the maganification of the interchangeable lens used. 1:1 – 1:2 magnification is available when this lens used.

Caution: This Macro lens may need to be re-installed on the corresponding camera of due to magnification change.

Depending on the closest focusing distance of the interchangeable lens, the macro function goes a closest focusing distance of 3-5cm.

Fill Light

This Rechargable LED Fill Light I refer to “this Fill Light” is use as the Fill light that is not for replacing the main light. This Fill light provide 3 color mode with color tempertaure,3200K / 4500K / 6500K. Each color temperature have 3-speed brightness. The effective distance is between 1ft – 5ft (0.3m – 1.5m)

  1. Shade
  2. 1 /4″ Screw Hole for Triprd or Clip.
  3. Single Control Button
  4. Chariging Port
  5. Charging indicator LED
  • Turn on/ Turn off: Press and hold the switch button for 2 seconds to turn on , and then press and hold for 2 seconds again to turn off
  • Lighting mode: Gently press the switch button to adjust the brightness and color temperature.
  • Charging:The charging indicator light is red to indicate charging, and green to indicate charging is complete

Installation

If the Smartphone Camera is sticked with Filter or protector. Remove it before using this lens.

This Lens are available with standard 17mm thread diameter. It can be mounted onto the Smartphone Case or Cage with the 17mm Screw Thread, e.g. Sandmarc iphone Case, Neweer iphone Cage.

Important

If you have difficult to setup the Lens, please refer here.

Turn off the Macro before using the Lens.

Setup onto the Main Camera. It is designed on Main camera. Please find the Main Camera and setup on it. Same method can be used to find camera of different magnification.

It is recommended to use the third party camera to prevent the swap between camera. e.g. Halide Mark ll, ProCamera+…etc.

Remark: Sometimes, it will be more easy if the rest camera is covered when you are using the main camera.

This Lens SET is come with the Flat Clip for install this lens flat onto the smartphone camera.

Setting the Flat Clip for Lenses

A. Align the Flat Clip to the Main Camera. Clip the Flat clip until position.

B. Adjust the Screw Plate until align the screw hole to the Main Camera.

C. Screw this Lens onto the clip.

NOTE:
1. Turn off the Macro Control when using this Wide Lens or this Macro Lens.
2. Some of the smartphone camera may not be compatible.

Setting the Fill Light

Align the Fill Light to the Clip. Turn screw anti clockwise to lock and clockwise to unlock.

Cautions

  1. When mounting this lens, be careful not to subject it to any form of physical shock.
  2. Be careful when placing the smartphone with the lens mounted on a tabIe or other flat surface.
  3. Remove the lens when moving the smartphone.
  4. Do not hold the camera by the attached lens when picking up the camera.
  5. Be sure to cover the lens cap of this device when storing it.
  6. To prevent the accumulation of mould, do not leave the lens in an extremely humid place for a long time.
  7. Do not look directly to the sun through this lens to avoid eye injury and the risk of loss of the vision.
  8. The lens should be handled with care and do not drop to prevent the risk of the accident.
Fill Light
  • Do not use a power supply with an output other than DC5V-1A, as it may cause heating or malfunction.
  • Do not disassemble parts without permission, as it may cause product malfunction or damage.
  • This product contains lithium batteries, please dispose of them separately from household waste.
  • Do not squeeze or throw into the fire. If severe swelling occurs, do not continue to use.

Cleaning

Use a blowing brush or soft brush to remove dust from the surface of this lens. Please use a soft cloth with a small amount of mild cleaning solution to wipe finger print or other stains from this lens.

Restriction

When using a flash or AF illuminator, the light source may be blocked and lens shadows may form on the image. Moisture may condense on this lens if it is brought directly from a cold place to a warm place. To avoid this, place the lens in a plastic bag or similar item beforehand. Wait until the air temperature iniside the bag reaches €ambient temperature, then take out the lens and install.
