KZ-06

Instrustion Manual

Package Content

Wide Lens x 1

Macro Lens x 1

Adaptor x 1

Lens Hood x 1

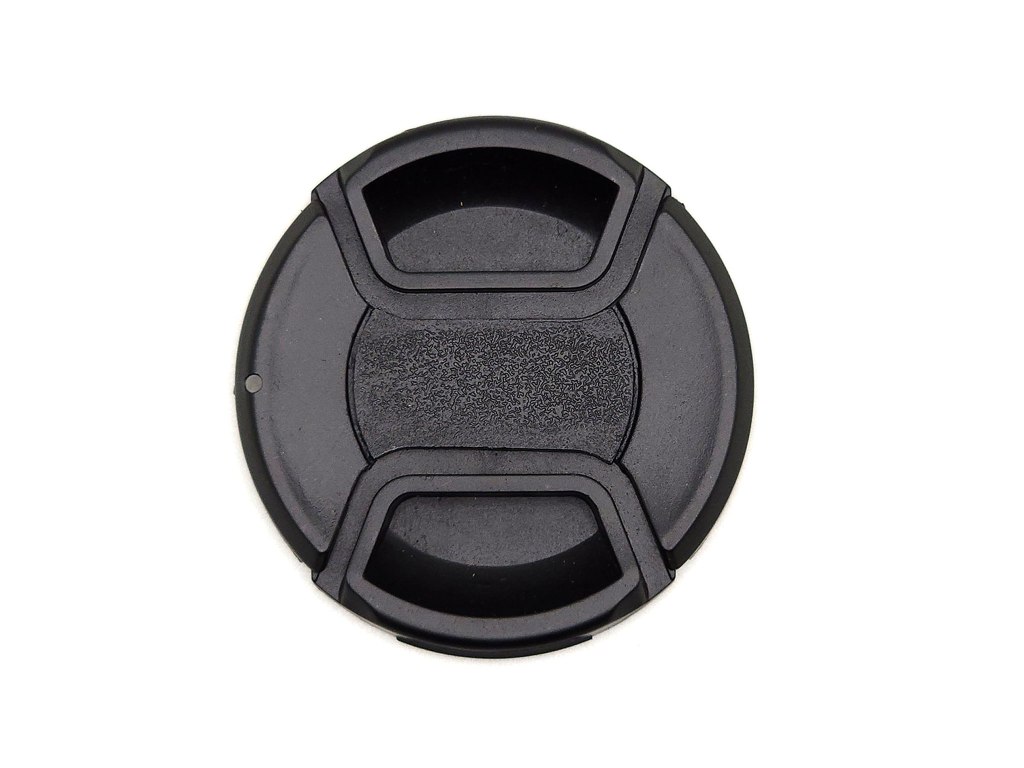

Front Lens Cap x 1

Rear Lens Cap x 1

Pouch x 1

Clenaing Cloth x 1

Version Control

DateModel#DescriptionIssued by

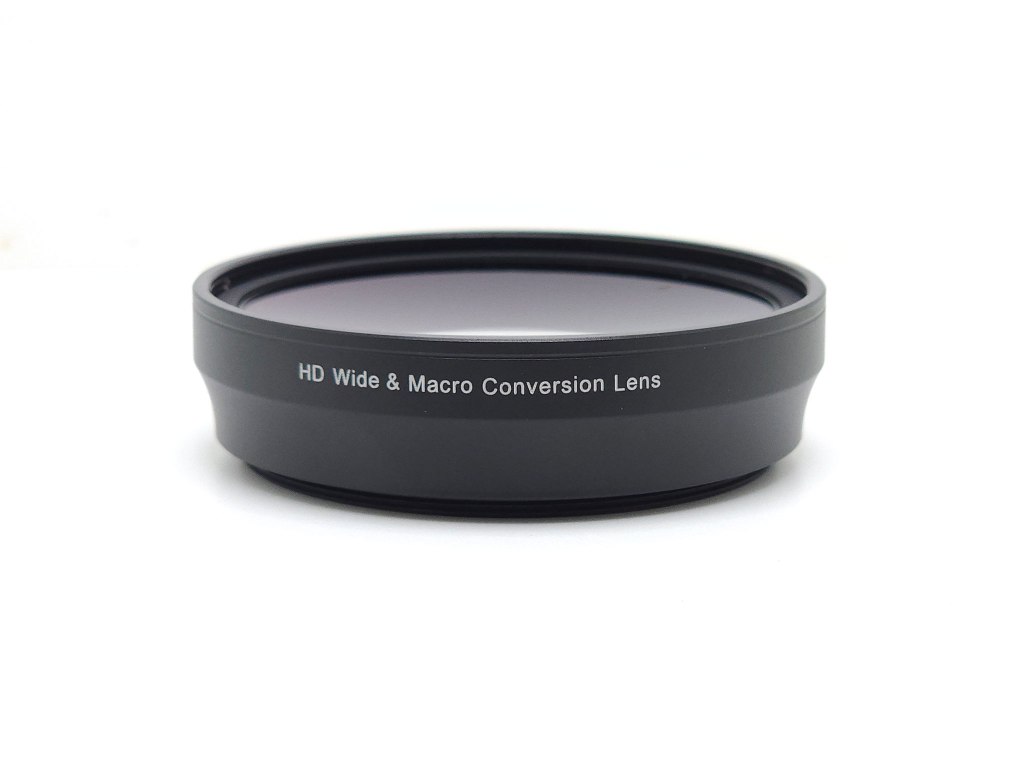

2024/6/1KZ-06HD Wide & Macro Conversion Lens
for X100V / X1000VI
with Lens Hood		FotoZ
2024/6/1KZ-06SHD Wide & Macro Conversion Lens
for X100V / X1000VI
with Lens Hood (Silver Version)		FotoZ

Overview

This user manual applied to a varity of different interchangable lenses.

This HD Wide & Macro conversion lens I referred to as “this lens” is compatible with the interchangeable lens cameras with a 49mm filter thread.

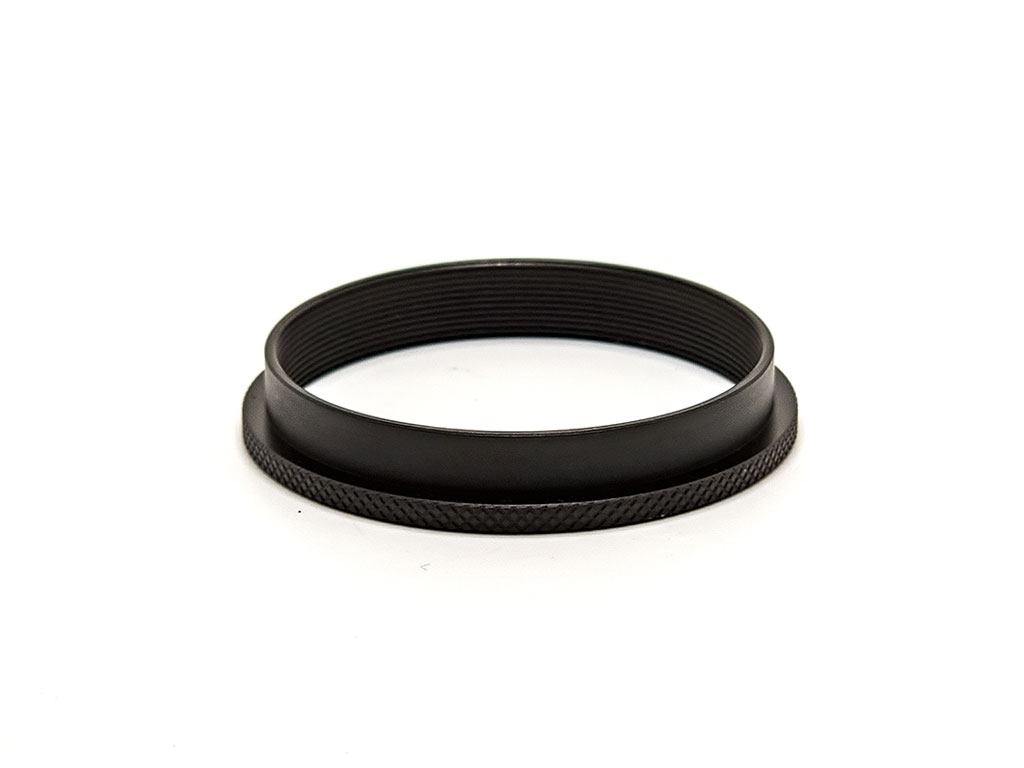

Adaptor LHS-F49 is Black Version
Adaptor LHS-F49S is Silver Version.

This Adaptor is compatible with Fujifilm X100V / X100VI, provide the 49mm Screw Thread can be used with this lens or other external 49mm filters such as ND/Black Diffusion, etc. only when this Lens Hood is not attached.

This Lens Hood is setting to the Adaptor with no vignetting.

This lens is compatible to the Adaptor LHS-F49 / LHS-F49S with a maximum field of view wide angle of up to 75 degrees at focal lengths within 28mm (35mm full-frame equivalent).

Depending on the closest focusing distance of the interchangeable lens, the macro function goes a closest focusing distance of 3-5cm.

Magnification 1:1 – 1:2 available dependlng on the magnification of the interchangeable lens used.

Installation

Caution: If the camera is mounted with Filter or protector. Remove it before using this adaptor.

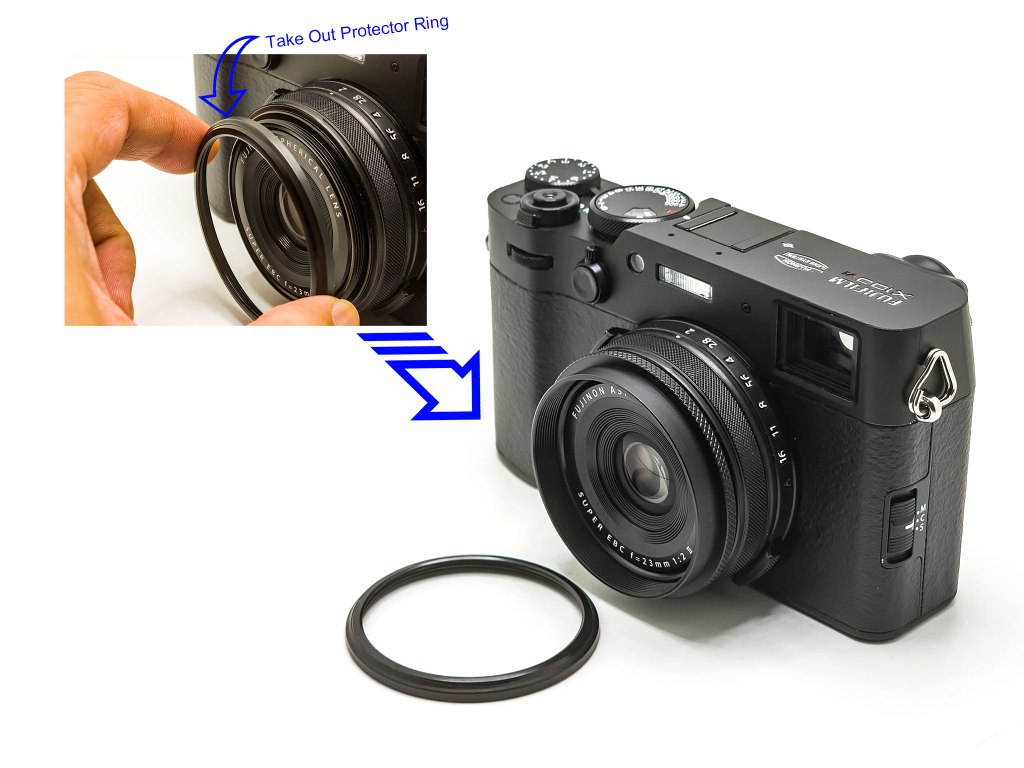

Remove the protector ring of the camera before install this adaptor onto the camera.

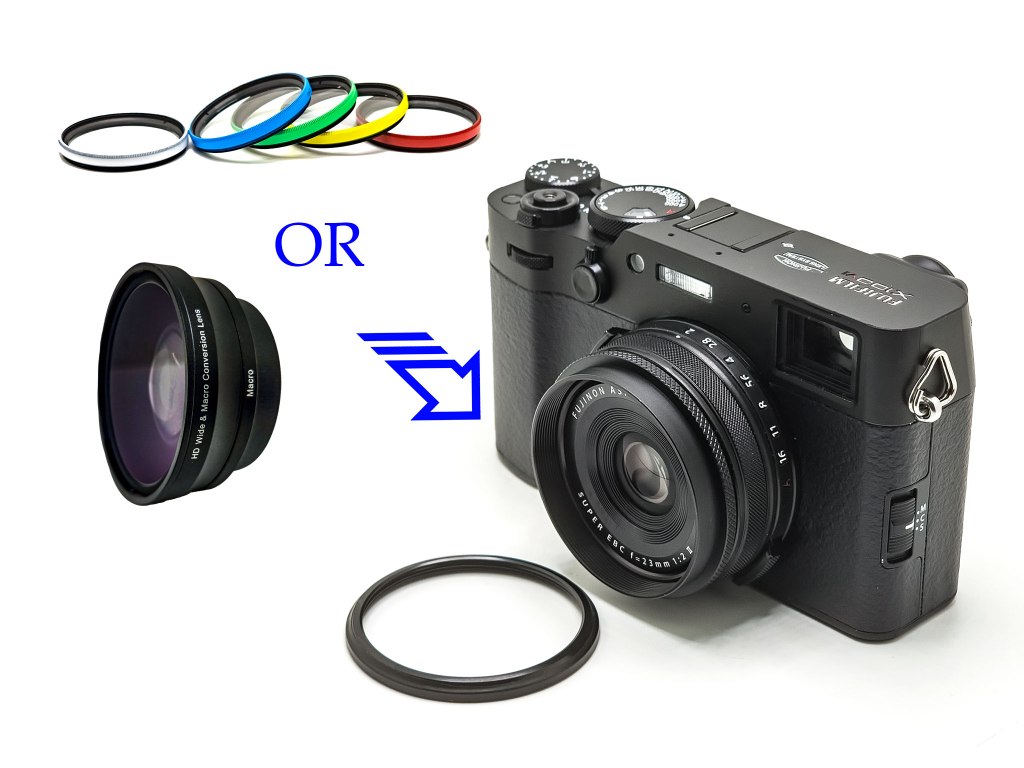

Screw Thread size is 49mm that is compatible to this lens or other filters with 49mm Screw Thread.

Caution: Filter is not included in this item.

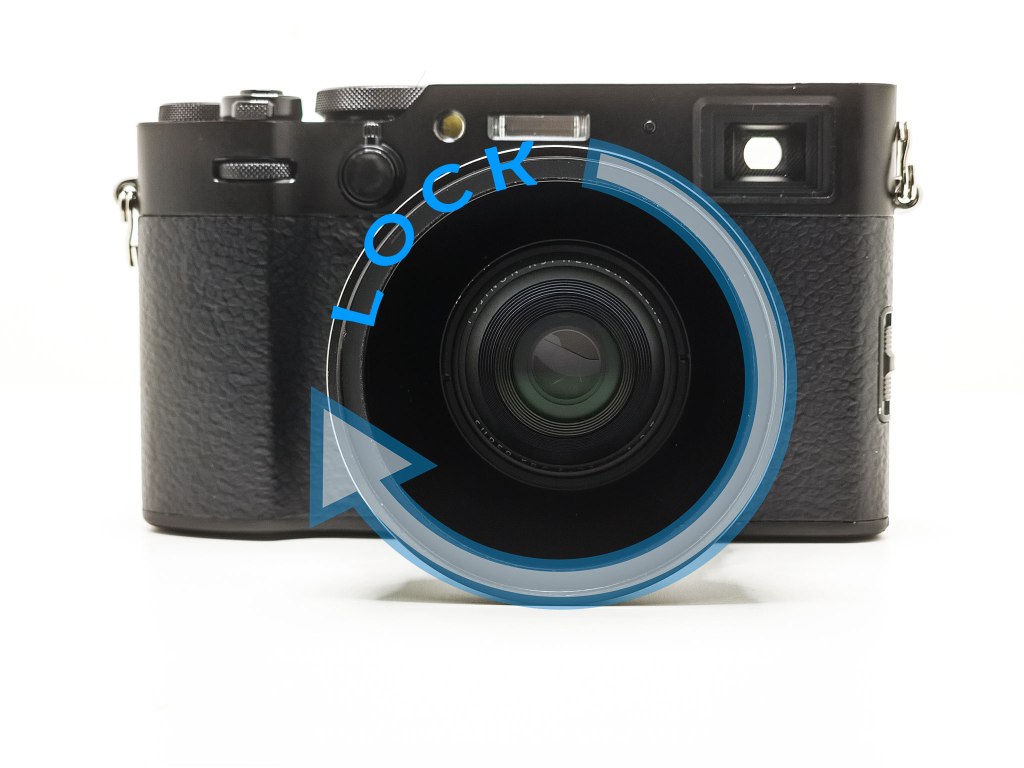

Turn Clockwise to set up this Lens on to the Adaptor.

When setting the Lens Hood, please take off this lens or other filters.

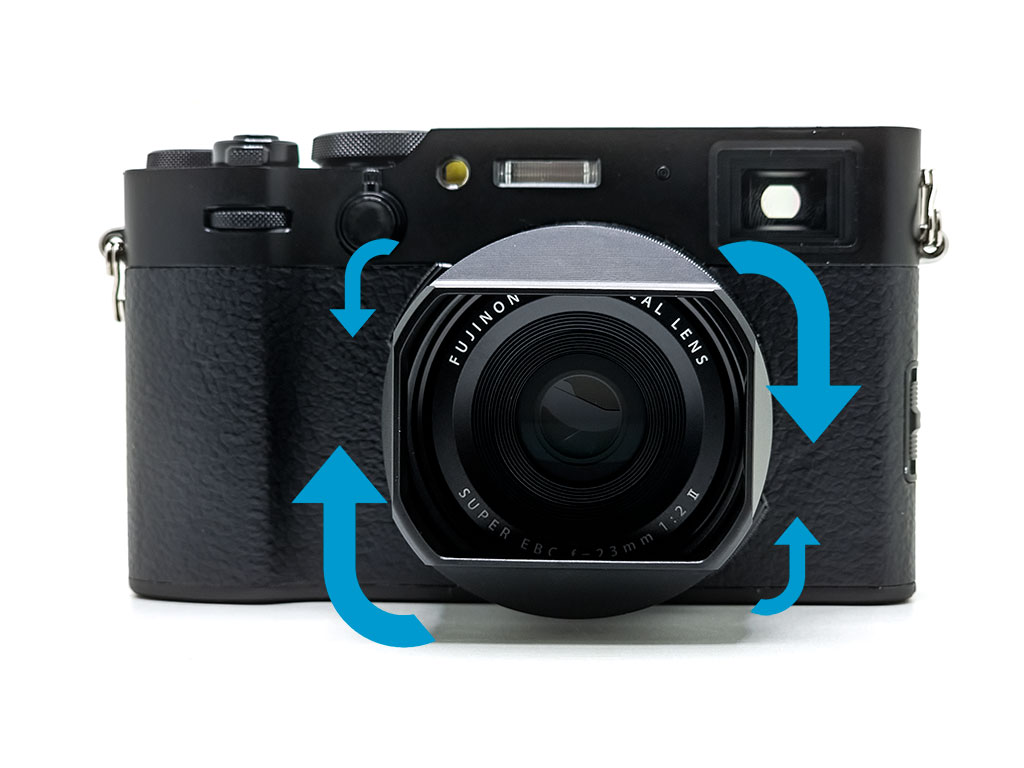

Adjust this lens hood to appropriate angle, Push this Lens Hood onto the Adaptor until it is Flatten.

Cautions

  1. When mounting this lens, be careful not to subject it to any form of physical shock.
  2. Be careful when placing the camera with the lens mounted on a tabIe or other flat surface.
  3. Remove the lens when moving the camera.
  4. Do not hold the camera by the attached lens when picking up the camera.
  5. Be sure to cover the lens cap of this device when storing it.
  6. To prevent the accumulation of mould, do not leave the lens in an extremely humid place for a long time.
  7. Do not look directly to the sun through this lens to avoid eye injury and the risk of loss of the vision.
  8. The lens should be handled with care and do not drop to prevent the risk of the accident.

Cleaning

Use a blowing brush or soft brush to remove dust from the surface of this lens. Please use a soft cloth with a small amount of mild cleaning solution to wipe finger print or other stains from this lens.

Restriction

When using a flash or AF illuminator, the light source may be blocked and lens shadows may form on the image. Moisture may condense on this lens if it is brought directly from a cold place to a warm place. To avoid this, place the lens in a plastic bag or similar item beforehand. Wait until the air temperature iniside the bag reaches €ambient temperature, then take out the lens and install.
