Instrustion Manual
Lanuage
English / 日本語
Package Content

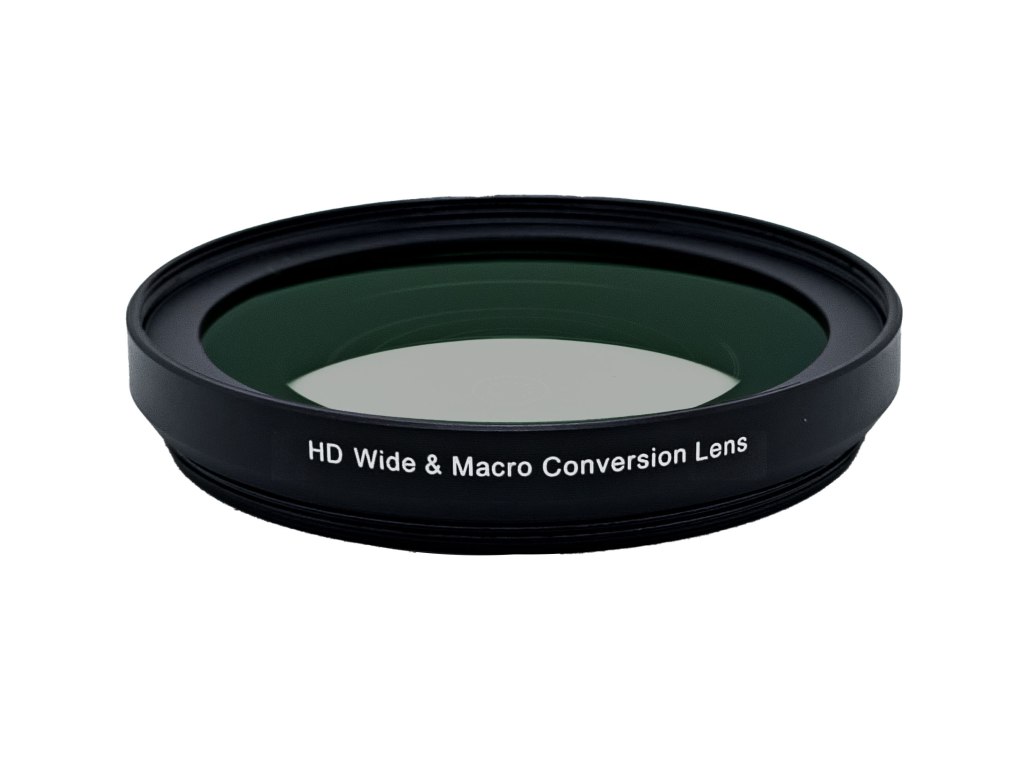

Wide Lens x 1

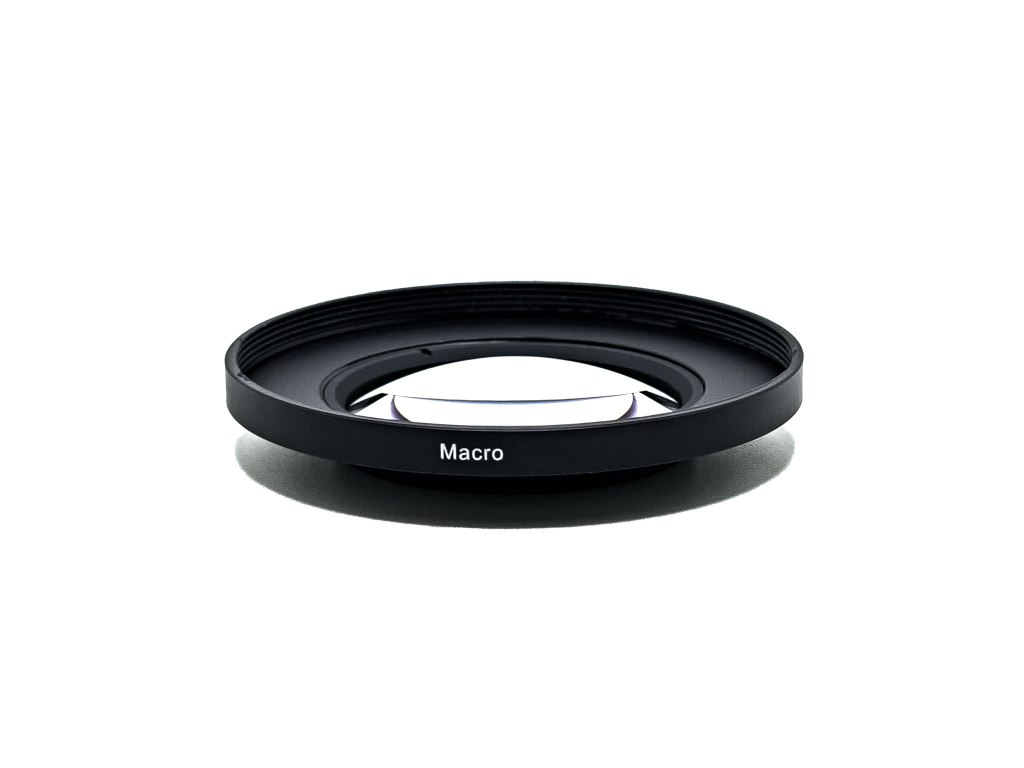

Macro Lens x 1

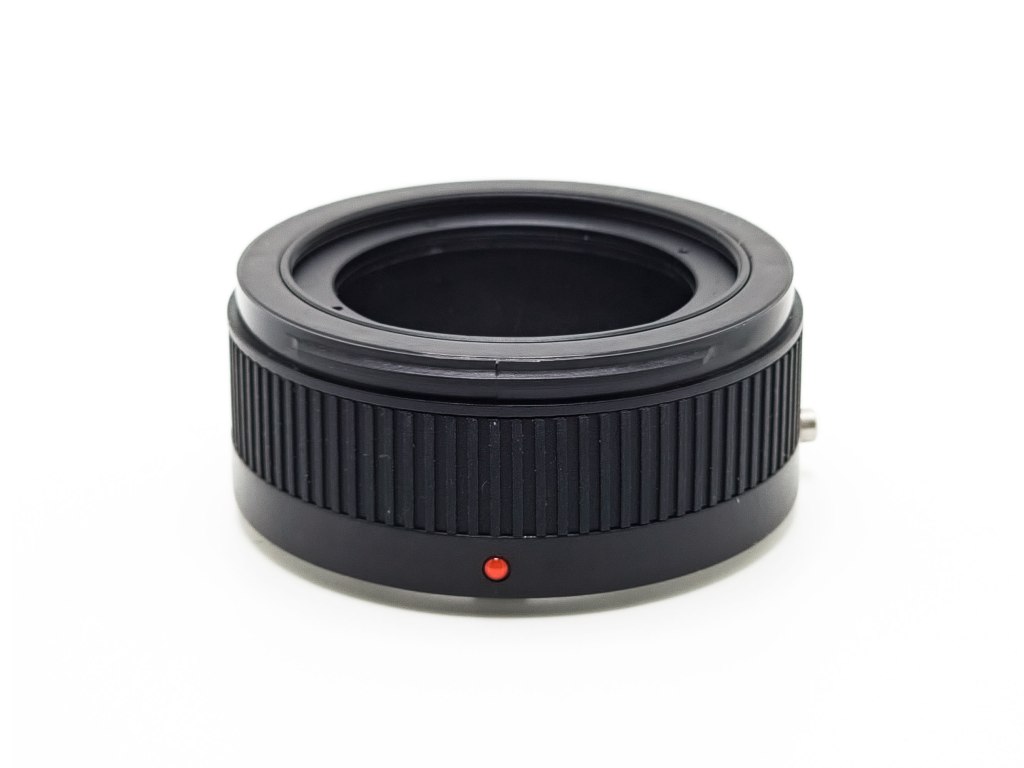

Extension Tube x 1

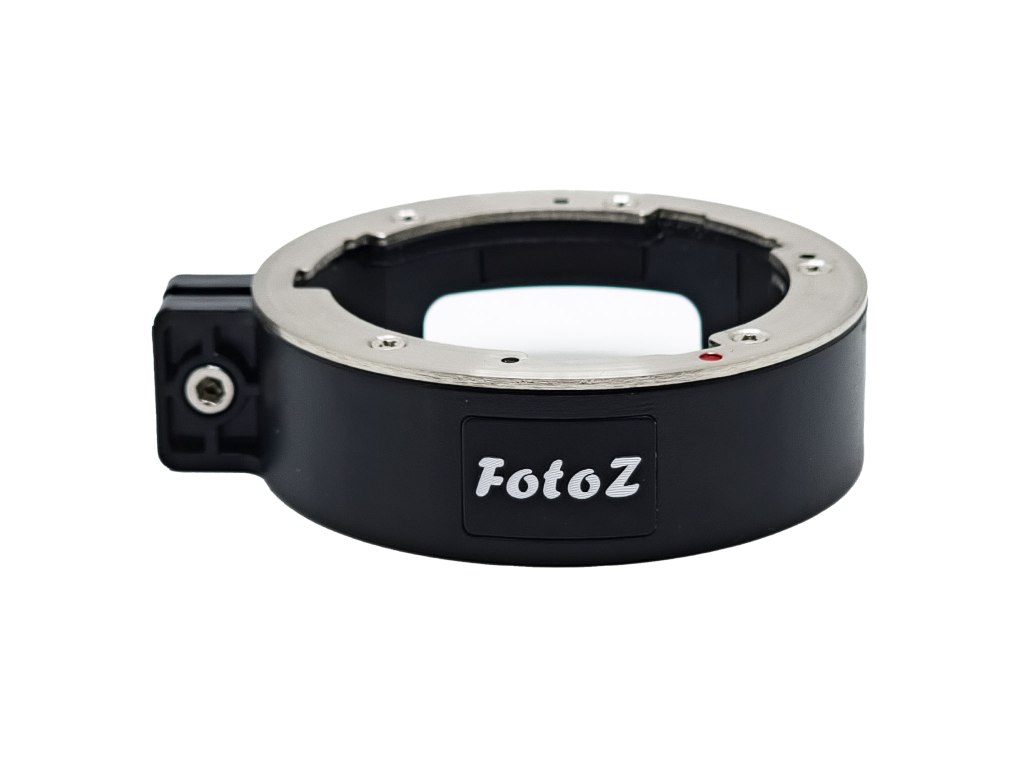

Bayonet Base x 1
Front Lens Cap x 1
Rear Lens Cap x 1
Lens Pouch x 1
Cleaning Cloth x 1

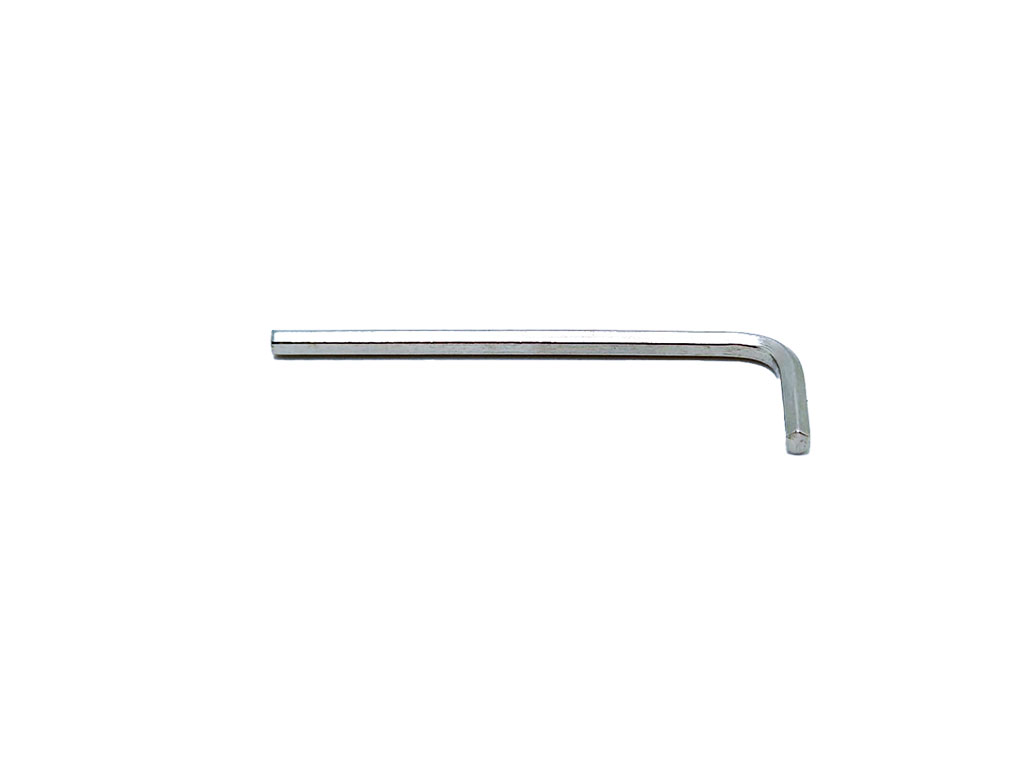

Allen Key x 1
Caution: Camera is not included in the package.
Version Control
| Date | Model# | Description | Issued by |
|---|---|---|---|
| 2024/6/1 | KZ-04 | HD Wide & Macro Conversion Lens for SONY Vlogcam ZV-1 M2 | FotoZ |
Overview
This HD Wide & Macro conversion lens I referred to as “this lens” is compatible with Sony Vlogcam ZV-1 M2, provide a maximum field of view wide angle of up to 114 degrees at focal lengths within 14mm.
This Extension Tube with this Bayonet Base can be used directly on the Sony ZV-1 M2 which enable the front 49mm diameter Screw Thread attach to the front Sony ZV-1 M2 that this lens can be attached to the Sony ZV-1 M2.
This Extension Tube with this Bayonet Base can be used with external 49mm filters such as ND/Black Diffusion, etc. only when this Lens is not attached.
Depending on the Focus Length of the Sony Vlogcam ZV-1 M2, the macro function goes a closest focusing distance of 3-5cm.
Magnification 1:1 – 1:2 available dependlng on the magnification of the Focus Length of the Sony Vlogcam ZV-1 M2 used.
Installation
Caution: This lens is available with standard 49mm thread diameter which is ONLY attached to the Extension Tube.
STEP I

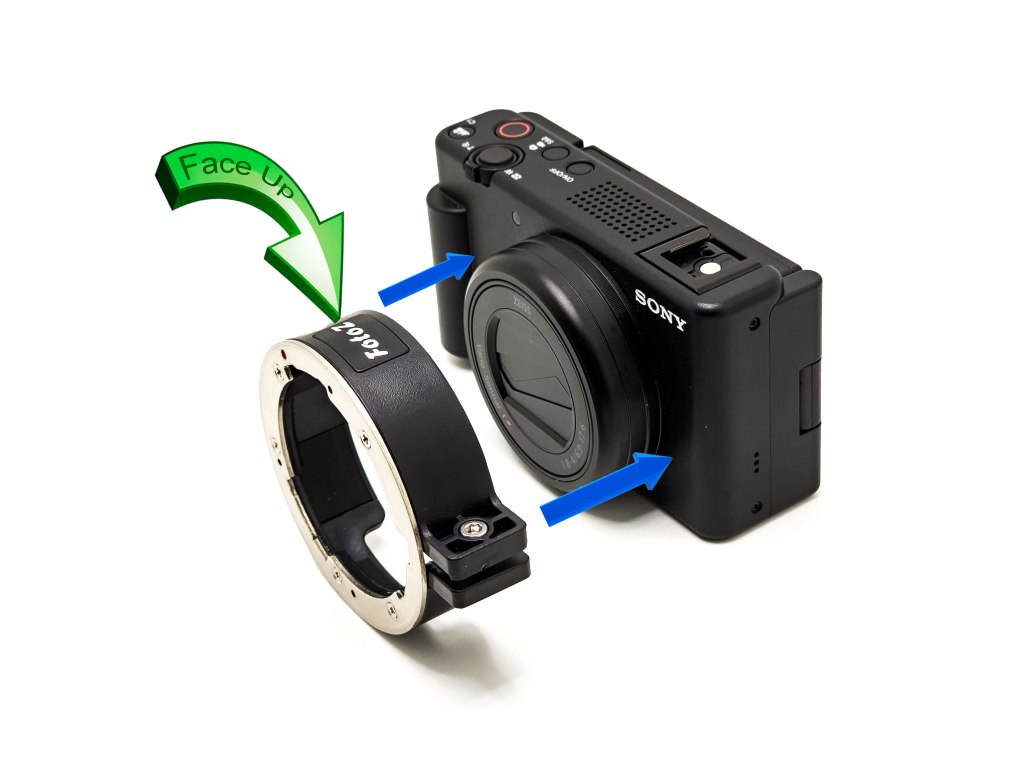

Push the Bayonet Base onto the Collapsible Lens with the logo face up until it is Flatten.
STEP II
Set the Screw(Clockwise) firmly with the Allen Key provided in the package.
STEP III
Align the Mounting Index(RED) on the Extension Tube and the Bayonet Base. Rotate the clockwise until the “Click” sound.
STEP IV

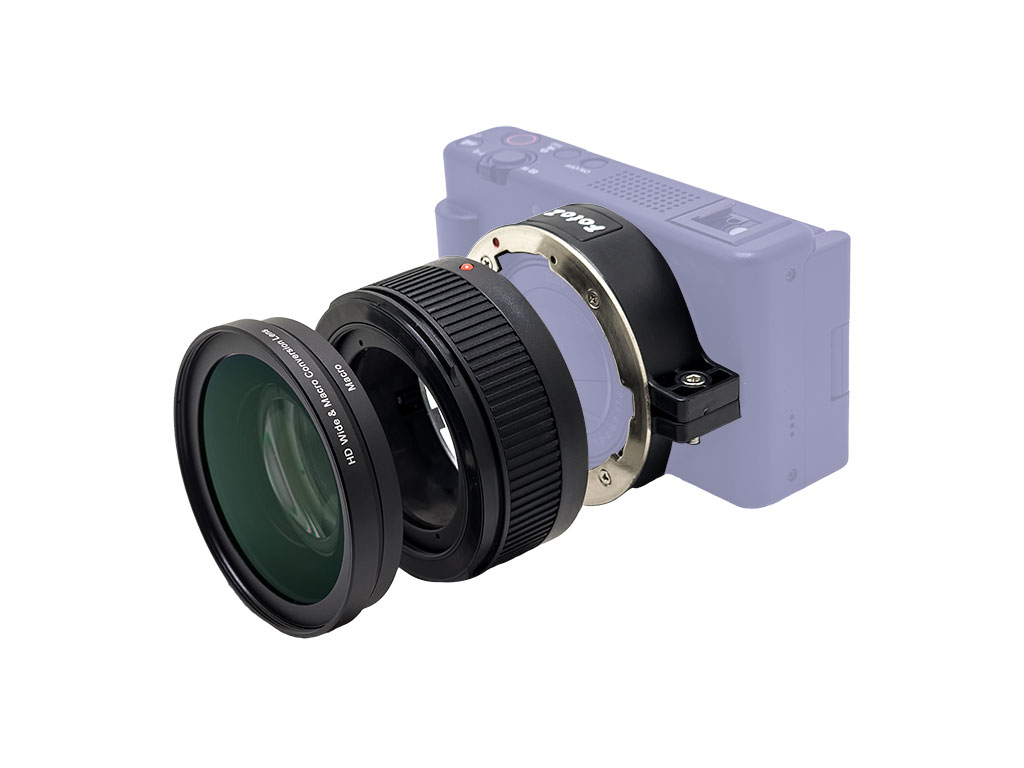

Setting the HD Wide & Macro Conversion Lens
Turn Clockwise the HD Wide & Macro Conversion Lens onto the Front Thread of the Extension Tube.
STEP V
Remove the Extension Tube from the Bayonet Base.
Press the Remove Button and turn Anti-clockwise to remove the Extension Tube.
Cautions
- When mounting this lens, be careful not to subject it to any form of physical shock.
- Be careful when placing the camera with the lens mounted on a tabIe or other flat surface.
- Remove the lens when moving the camera.
- Do not hold the camera by the attached lens when picking up the camera.
- Be sure to cover the lens cap of this device when storing it.
- To prevent the accumulation of mould, do not leave the lens in an extremely humid place for a long time.
- Do not look directly to the sun through this lens to avoid eye injury and the risk of loss of the vision.
- The lens should be handled with care and do not drop to prevent the risk of the accident.
Cleaning
Use a blowing brush or soft brush to remove dust from the surface of this lens. Please use a soft cloth with a small amount of mild cleaning solution to wipe finger print or other stains from this lens.
Restriction
When using a flash or AF illuminator, the light source may be blocked and lens shadows may form on the image. Moisture may condense on this lens if it is brought directly from a cold place to a warm place. To avoid this, place the lens in a plastic bag or similar item beforehand. Wait until the air temperature iniside the bag reaches ambient temperature, then take out the lens and install.
FotoZ
