Instrustion Manual

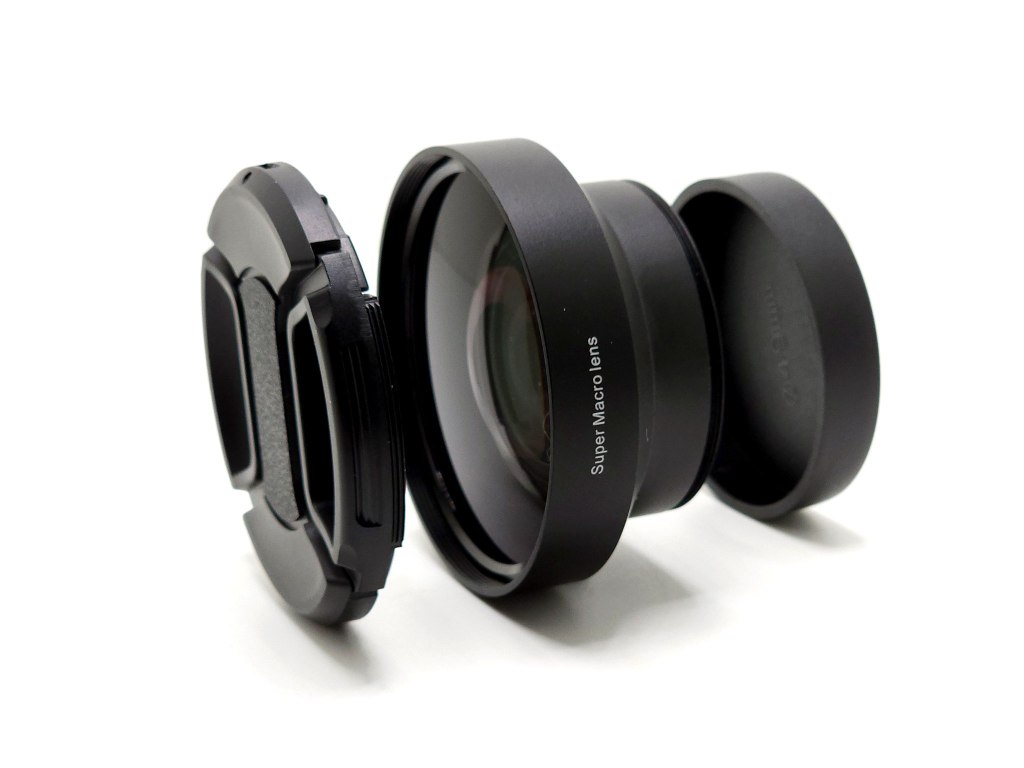

Package Content
Macro Lens x 1
Front Lens Cap x 1
Rear Lens Cap x 1
Cleaning Cloth x 1
Prouch x 1
Version Control
| Date | Model# | Description | Issued by |
|---|---|---|---|
| 2023/9/1 | KZ-02 | Super Macro Lens | FotoZ |
Overview
This user manual applied to a varity of different interchangable lenses.
The delicated Super Macro Lens (“this lens”) can be used with 49mm size lens.
This lens is supplied with a standard 49mm threaded. Other 37/40.5/43/46/52mm lens need to be used with separately purchased adapters.
This lens provides APSC or M43 system interchangeable lens in full frame 35mm equivalent focal length, maximum 87 degrees field of view, 16mm to 50mm focal length of magnification macro use.
With this lens, the closest focusing distance will vary, usually within a distance of 5-15cm.
Magnification depend on the maganification of the interchangeable lens used. 1:1 – 1:2 magnification is available when this lens used.
Installation
If the interchangeable Lens is mounted with Filter or protector. Remove it before using this lens.

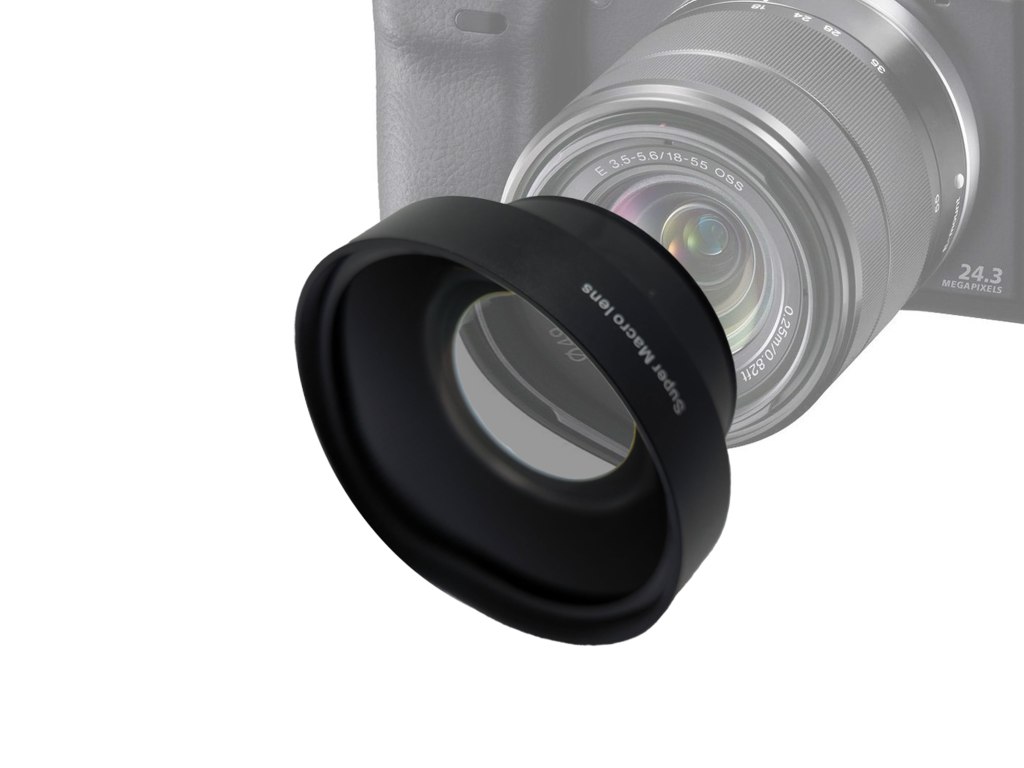

Check if the interchangeable lens is mounted on the camera, and attach this product according to the different filter thread sizes. If the interchangeable lens filter size is 49mm, the product can be attached directly without the use of an adapter. Other filter sizes must be attached to an adapter first.
Cautions
- When mounting this lens, be careful not to subject it to any form of physical shock.
- Be careful when placing the camera with the lens mounted on a tabIe or other flat surface.
- Remove the lens when moving the camera.
- Do not hold the camera by the attached lens when picking up the camera.
- Be sure to cover the lens cap of this device when storing it.
- To prevent the accumulation of mould, do not leave the lens in an extremely humid place for a long time.
- Do not look directly to the sun through this lens to avoid eye injury and the risk of loss of the vision.
- The lens should be handled with care and do not drop to prevent the risk of the accident.
Cleaning
Use a blowing brush or soft brush to remove dust from the surface of this lens. Please use a soft cloth with a small amount of mild cleaning solution to wipe finger print or other stains from this lens.
Restriction
When using a flash or AF illuminator, the light source may be blocked and lens shadows may form on the image. Moisture may condense on this lens if it is brought directly from a cold place to a warm place. To avoid this, place the lens in a plastic bag or similar item beforehand. Wait until the air temperature iniside the bag reaches ambient temperature, then take out the lens and install.
FotoZ
