Instrustion Manual

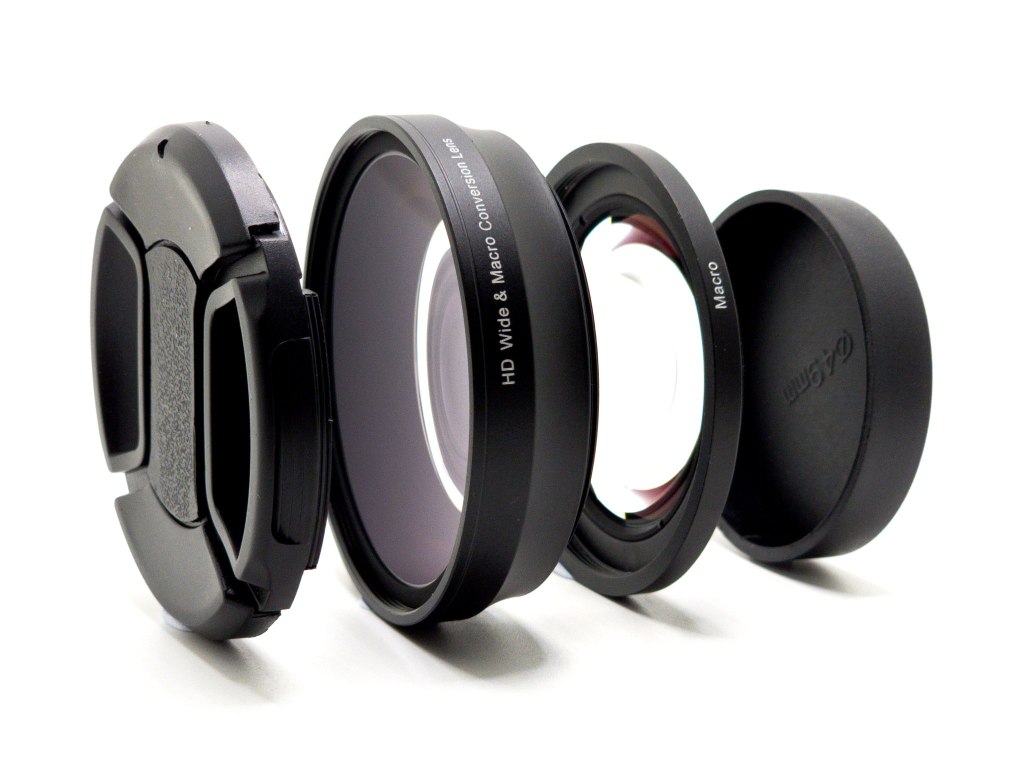

Package Content
Wide Lens x 1
Macro Lens x 1
Front Lens Cap x 1
Rear Lens Cap x 1
Pouch x 1
Clenaing Cloth x 1
Version Control
| Date | Model# | Description | Issued by |
|---|---|---|---|
| 2023/9/1 | KZ-01 | HD Wide & Macro Conversion Lens | FotoZ |
Overview
This user manual applied to a varity of different interchangable lenses.
This HD Wide & Macro conversion lens I referred to as “this lens” is compatible with the interchangeable lens cameras with a 49mm filter thread.
This lens is compatible most of the interchangeable lenses, with a maximcm field of view wide angle of up to 84 degrees at focal lengths within 18mm (24mm equivalent to Full Frame), well adapted for macro shooting.
Depending on the closest focusing distance of the interchangeable lens, the macro function goes a closest focusing distance of 3-5cm.
Magnification 1:1 – 1:2 available dependlng on the magnification of the interchangeable lens used.
This lens can be used with external 62mm filters such as
ND/Black Diffusion, etc.
Installation
If the interchangeable Lens is mounted with Filter or protector. Remove it before using this lens.
This lens is available with standard 49mm thread diameter. If the interchangable lens is different diameter size, it must be installed with an adaptor ring which is available for seperate purchase.
NOTED: Some of the interchangeable lens may not be compatible.
Cautions
- When mounting this lens, be careful not to subject it to any form of physical shock.
- Be careful when placing the camera with the lens mounted on a tabIe or other flat surface.
- Remove the lens when moving the camera.
- Do not hold the camera by the attached lens when picking up the camera.
- Be sure to cover the lens cap of this device when storing it.
- To prevent the accumulation of mould, do not leave the lens in an extremely humid place for a long time.
- Do not look directly to the sun through this lens to avoid eye injury and the risk of loss of the vision.
- The lens should be handled with care and do not drop to prevent the risk of the accident.
Cleaning
Use a blowing brush or soft brush to remove dust from the surface of this lens. Please use a soft cloth with a small amount of mild cleaning solution to wipe finger print or other stains from this lens.
Restriction
When using a flash or AF illuminator, the light source may be blocked and lens shadows may form on the image. Moisture may condense on this lens if it is brought directly from a cold place to a warm place. To avoid this, place the lens in a plastic bag or similar item beforehand. Wait until the air temperature iniside the bag reaches ambient temperature, then take out the lens and install.
FotoZ
